AMARI

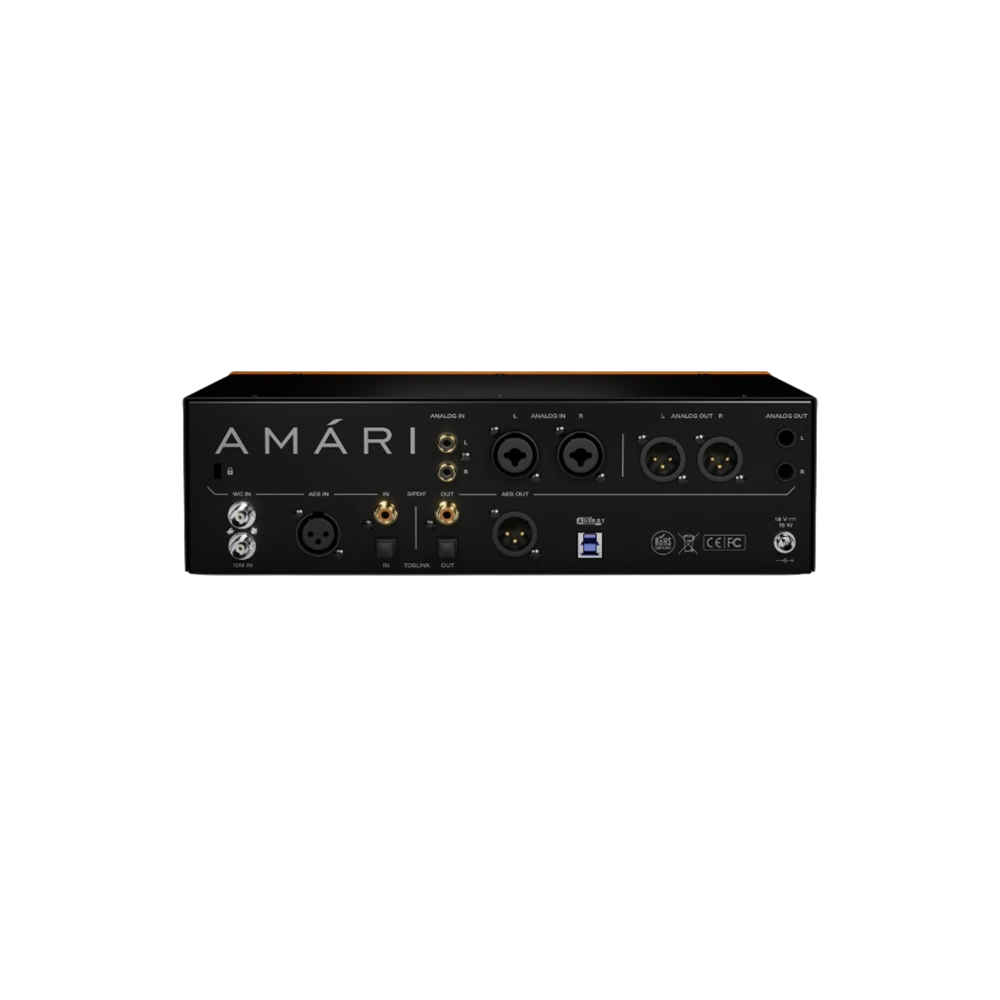

Antelope AMARI
$3195

Fully Equipped for mastering engineers and home audio enthusiasts who seek high-end sound quality for critical listening and audio archiving, AMÁRI is a reference-grade AD/DA converter with 24-bit, 384 kHz conversion and signature Antelope clocking. An easy-to-use interface and 2 headphone outputs with user-adjustable impedance complete AMÁRI’s unique profile.

ADDITIONAL INFORMATION
CONNECTIVITY
Inputs Analog
 1x Stereo pair either or balanced Combo XLR (24dBu max input level) or unbalanced RCA (8,2dBu / 6dBv max input level)
Inputs Digital
 1x AES/EBU up to 192kHz
1x S/PDIF up to 192kHz
1x TOSLINK up to 96kHz
Outputs Analog
 1x Stereo Pair balanced either on XLR or TRS.
Output Level: 24dBu max (XLR) and 18dBu max (TRS), digital trim available

2x Stereo Headphone outs on ComboXLR with individual volume control knobs. Output Power: 1,4 Watts max. Selectable output impedance from -4.6 to 85.3 Ohm available in 17 steps

Headphone outputs are also configurable to drive 1 pair fully balanced headphone set with dedicated volume control
Outputs Digital
 1x AES/EBU up to 192kHz
1x S/PDIF up to 192kHz
1x TOSLINK up to 96kHz
sync inputs
 1× World Clock
1× Atomic 10M
bi-directional
 1x USB 3.1 Gen.1 on Type-B connector up to 384kHz
CONVERSION
AD Conversion
 2x AK5778 A/D Converter chips
24 bit 384kHz
Input: Full Differential Inputs
S/(N+D): 112 dB (S/N: 124 dB)
Dynamic Range: 128dB
DA Conversion
 8x CS43198 D/A Converter chips
24-bit 384kHz PCM *
Dynamic Range: 138dB

 * DSD over PCM playback is not currently supported.
We are looking into resolving this, but no estimate can
be provided for the time being. We apologize for the
inconvenience caused.
CLOCKING

4th Generation 64-bit Acoustically focused clock technology

Sample-rates supported:

AD and DA PCM: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 352.8kHz, 192kHz, 384kHz

POWER

DC Power Inlet with lock nut

Device equipped with wall wart power supply
