Empower Your Vocals
Take charge of your vocal sound with the VE-22, a portable multi-effects toolbox specially designed for singers. Perform with a diverse library of high-quality BOSS processing, from basic studio enhancement to dramatic voice-changing effects. Expand your range with real-time harmonies. And get creative with the free-flowing interface and versatile features for practice, recording, and online streaming. With the VE-22 in your chain, you’re primed and ready to deliver memorable, high-impact vocal performances everywhere you sing.
48 kHz
24 bits + AF method
AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
32 bits
32-bit floating point
39 types
99 (User) + 50 (Preset)
37 sec.

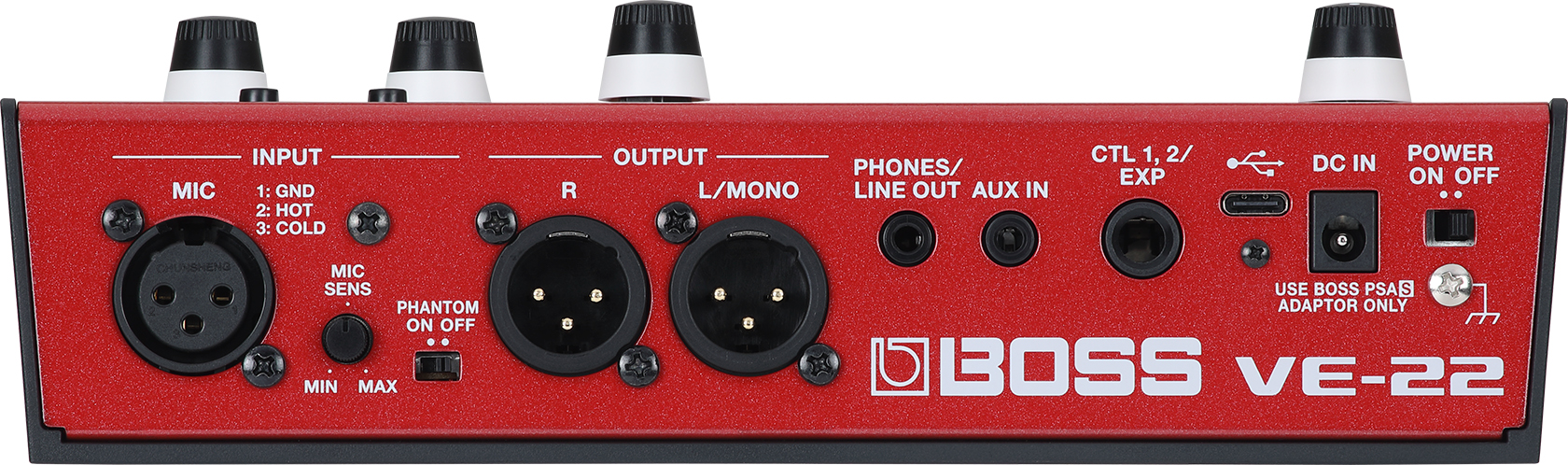

INPUT: -40 dBu (Adjustable)
AUX IN: -20 dBu
INPUT: 0 dBu
AUX IN: 0 dBu
INPUT: 4 k ohms
AUX IN: 27 k ohms
OUTPUT L/MONO, R: -40 dBu
PHONES/LINE OUT: -10 dBu
OUTPUT L/MONO, R: 600 ohms
PHONES/LINE OUT: 47 ohms
OUTPUT L/MONO, R: 600 ohms or greater
PHONES/LINE OUT: 47 ohms or greater

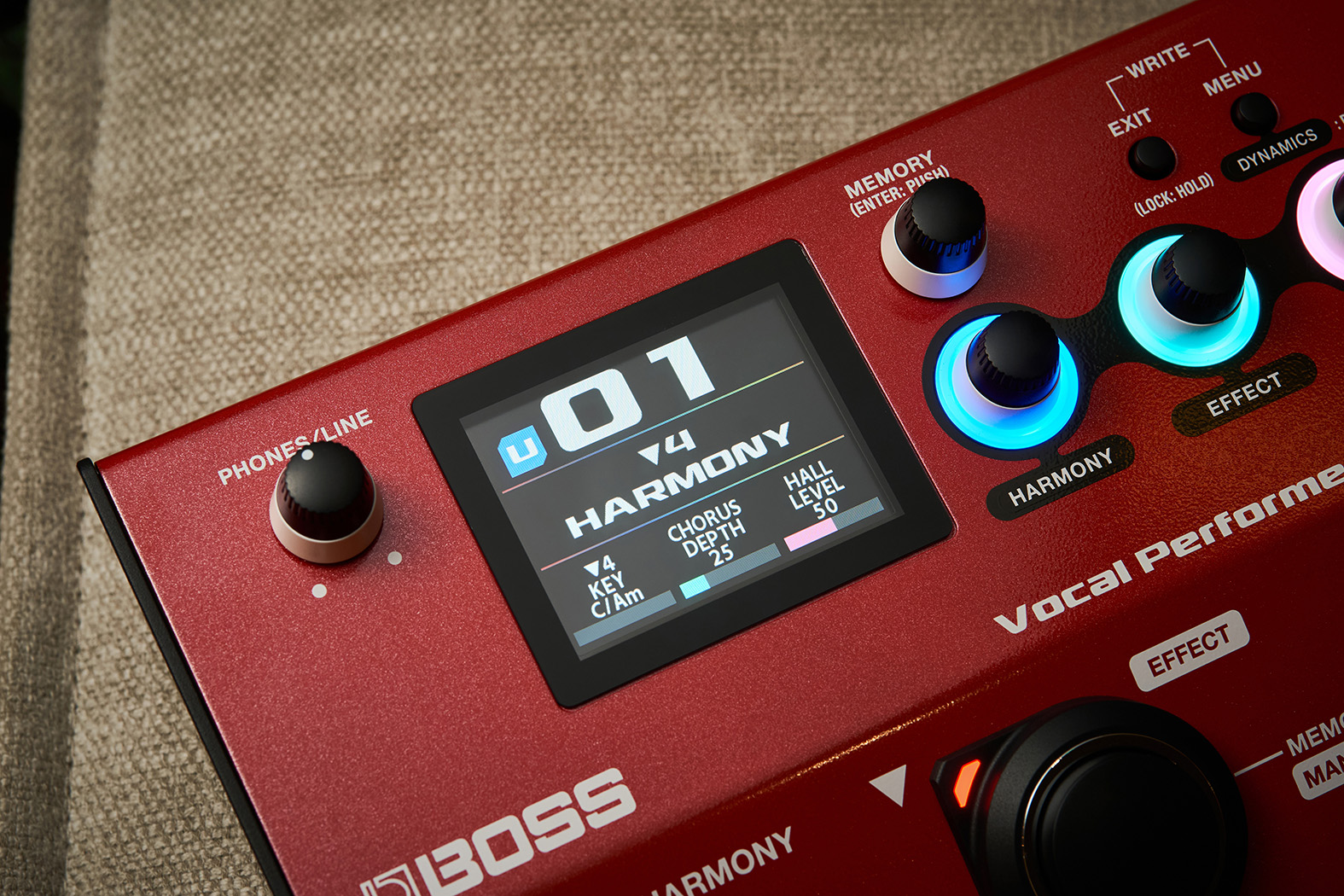

Graphic color LCD 320 x 240 dots
HARMONY switch
DOWN switch
UP switch
MENU button
EXIT button
PHONES/LINE knob
MEMORY knob
HARMONY knob
EFFECT knob
ECHO knob
MIC SENS knob
PHANTOM switch
POWER switch

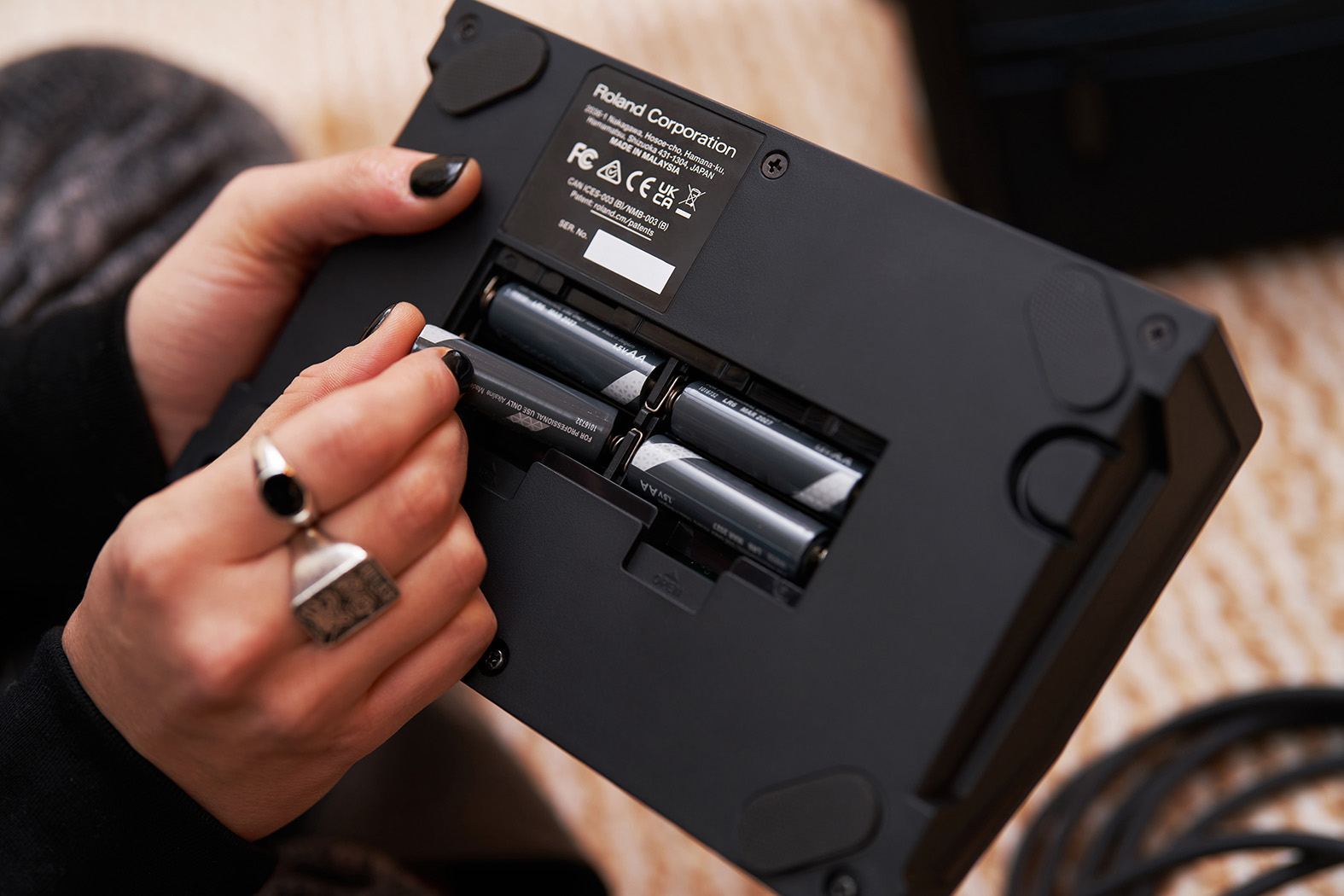

Alkaline battery (AA, LR6) x 4
AC adaptor (PSA-S series: sold separately)
260 mA (with phantom power)
180 mA (without phantom power)
Alkaline battery: Approximately 6 hours (with phantom power)
Alkaline battery: Approximately 9 hours (without phantom power)
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
STARTUP GUIDE
Alkaline battery (AA, LR6) x 4
Leaflet “USING THE UNIT SAFELY”
AC adaptor: PSA-S series
Footswitch: FS-5U, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
