Brig 1FS Delay
Brig 1FS Delay
$400

Certified Organic Delay
The delays that become true classics do not simply repeat the notes you play.

They do something special to each delay repeat – something that evokes a feeling, fueling the music and inspiring you.

Plug into Brig, play a note, and you’re instantly drawn in by repeats that evolve with captivating complexity and uncommonly rich tonal characteristics.

Brig delivers all the warmth, subtle grit and unique tactile playing experience of analog bucket brigade delays (BBDs), offering three distinct delay voicings in one highly addictive stereo pedal.

ADDITIONAL INFORMATION

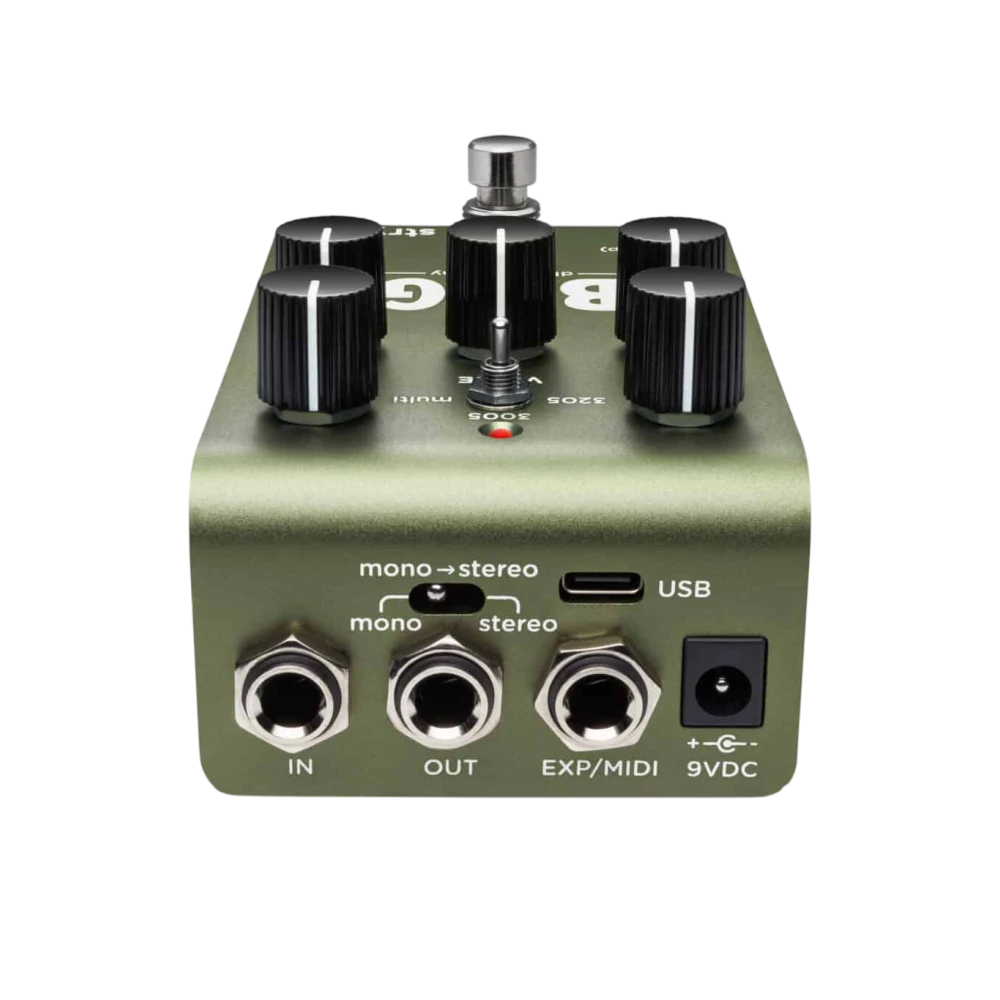

Ins, Outs, and Switches

High impedance ultra low-noise discrete Class A JFET TRS stereo input
Low impedance TRS stereo output
Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection
USB jack for controlling via MIDI from a computer or for performing firmware updates

Audio Quality

Premium JFET analog front end
Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
520MHz ARM Superscalar processor
32-bit floating point processing
20Hz to 20kHz frequency response
Audio Input Impedance: 1M Ohm
Audio Output Impedance: 100 Ohm
Typical signal to noise ratio: 116dB

More

Strong and lightweight anodized aluminum chassis
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA (power supply NOT included)
Dimensions:
4.6” deep x 2.7” wide x 2.5” tall
11.7 cm deep x 6.9 cm wide x 6.4 cm tall
Designed and built in the USA
