Drum 3P

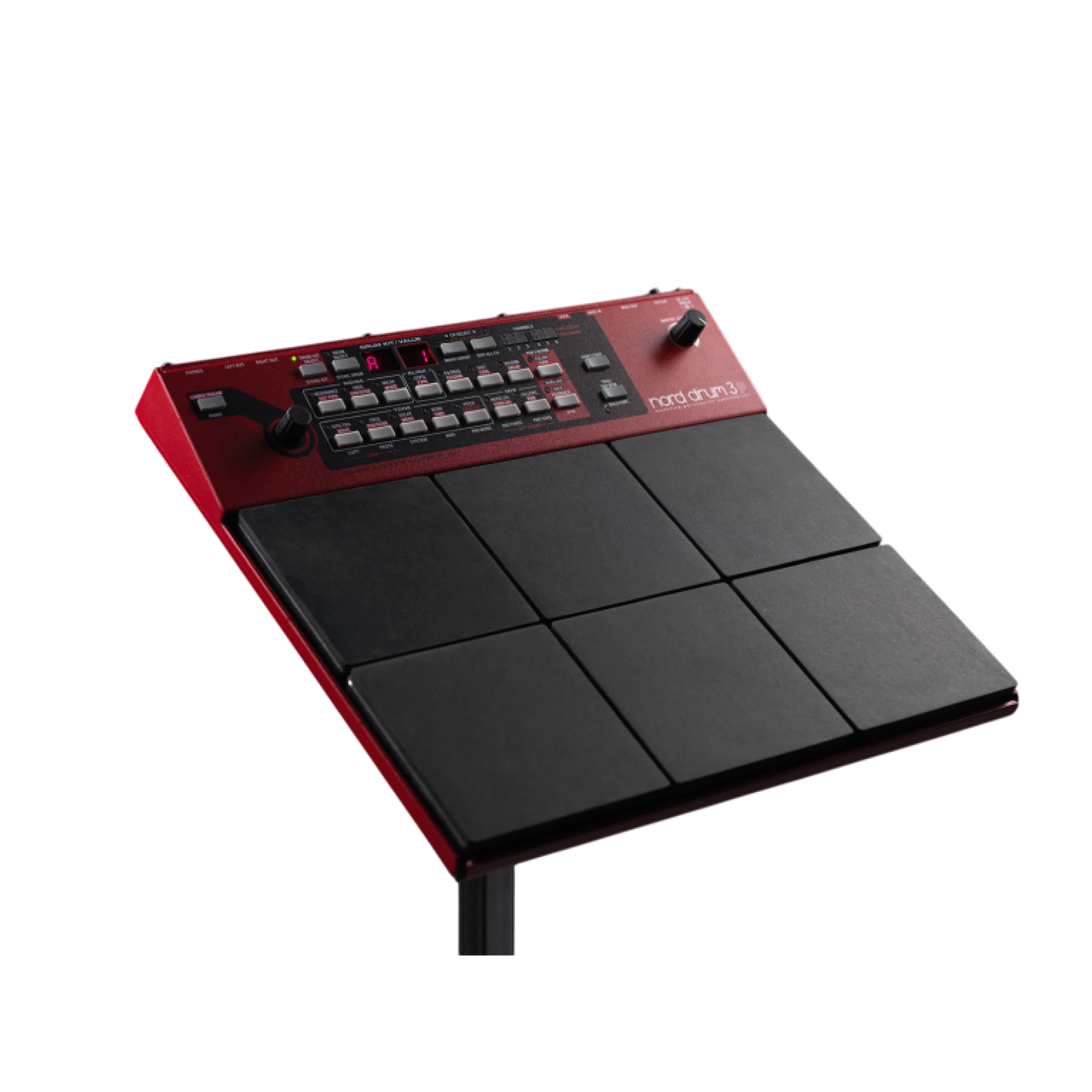

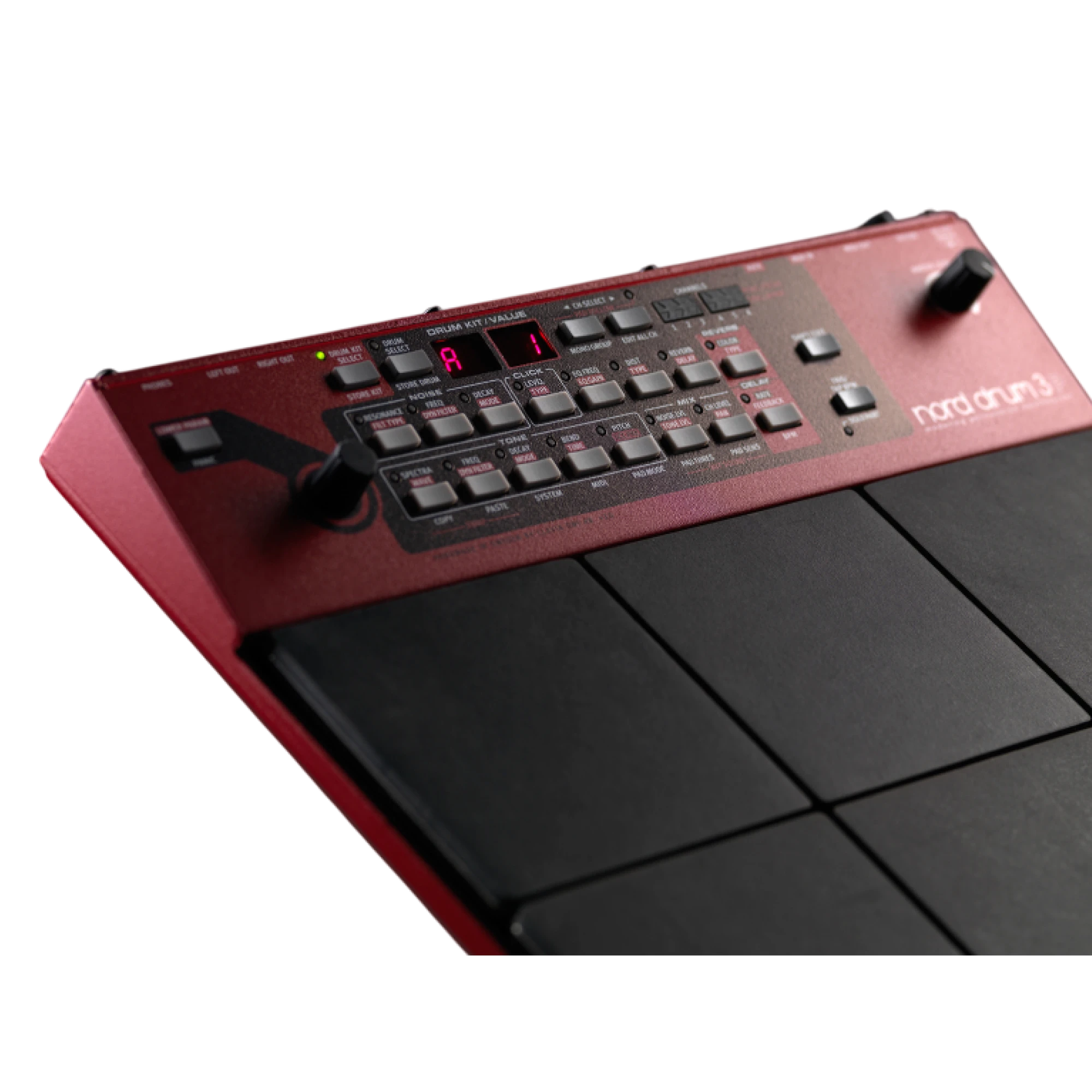

Nord Drum 3P
$1400

The super compact Nord Drum 3P combines stunning playability with unlimited sound design possibilities. New features include integrated multi-pad, Reverb and Delay effects, a simplified sound selection mode and new Sound Banks for quickly creating custom kits on the fly.

ADDITIONAL INFORMATION
Main features

6-channel Modeling Percussion Synthesizer
Integrated multipad, kick pad input and MIDI
Simplified user interface with easy sound selection
New preset 'Drum Select' library for kicks, snares, toms and more
Advanced sound engine with Resonant Synthesis, Subtractive synthesis and FM-synthesis
Reverb and Delay Effects - adjustable amount for each pad
Drive, Sample-Rate reduction, Ring Modulation and EQ-effects for each pad
MIDI in/out and full CC-control
Stereo Output with improved output level
Headphone Output with improved output level

Global

4 Character LED-display
4 Banks x 50 Programs for Drum Kits
8 User Banks x 50 sounds for single drum sounds
9 Drum banks for single drum sounds - Bass Drums, Snare Drums, Toms, Hi-Hats, Cymbals, Percussion, Bells, Tuned Percussion, Effects
Free OS updates

Sound generation

6-channel Percussion Modeling Syntesizer
Tone section - Resonance modeling, Subtractive, Ring Modulation and FM-synthesis
Noise section - Low Pass 12dB/24dB, High Pass 12db/24dB, High Pass High Cut and Band Pass 6dB/12dB filter. Adjustable resonance and filter envelope response
Click section - 12 click types, Noise Waveforms, Short Pulses, High Pass Filtered Pulses and Chirps. Adjustable level.

Effects

Global Stereo Reverb with 5 reverb modes (Tiled Room, Room, Plate, Stage and Hall) and Color highpass/low pass. Reverb amount can be adjusted per channel.
Global Delay with Rate (Milliseconds), Feedback and Tap Tempo mode (BPM)
Drive, Sample Rate Reduction and Ring Modulation Effects per channel
EQ with Gain and Frequency controls per channel

Pads and trigger input

6 integrated rubber pads with adjustable Input Threshold/Sensitivity
External Trigger input with adjustable Input Threshold/Sensitivity for Kick drum pad or similar
Adjustable Dynamic Response Curves
Channel Peak/Activity indicator

MIDI

MIDI Note ON/OFF
MIDI Program Change
MIDI CC parameter control

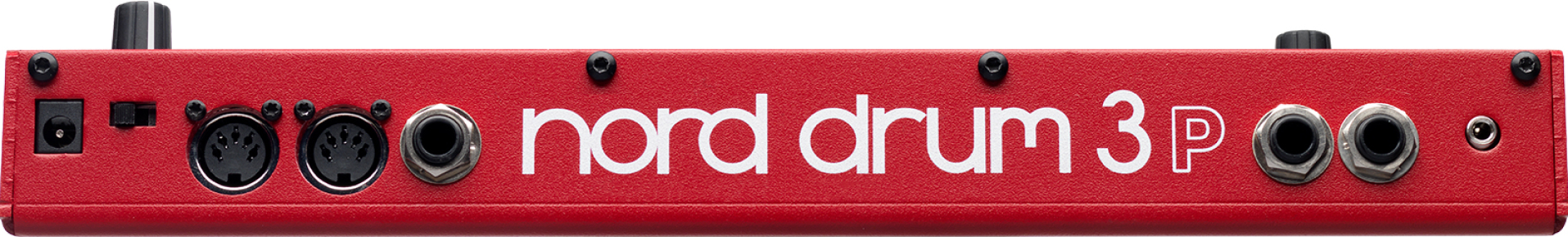

Connections

2 Audio Outputs ¼", 6,35 mm (unbalanced)
Stereo Headphones Output - 1/8”, 3,5 mm
MIDI in & out - 5 pin DIN connectors
1 generic trigger input - ¼”, 6,35 mm
DC input - 12V, 500mA

Dimension

29,9 x 4,85 x 28,1 cm (11,78" x 1.9" x 11,2")

Weight

1,85 kg (4,1 lbs)

Included Accessories

User Manual
Universal Module Mount
Universal Power Adapter
