Box content

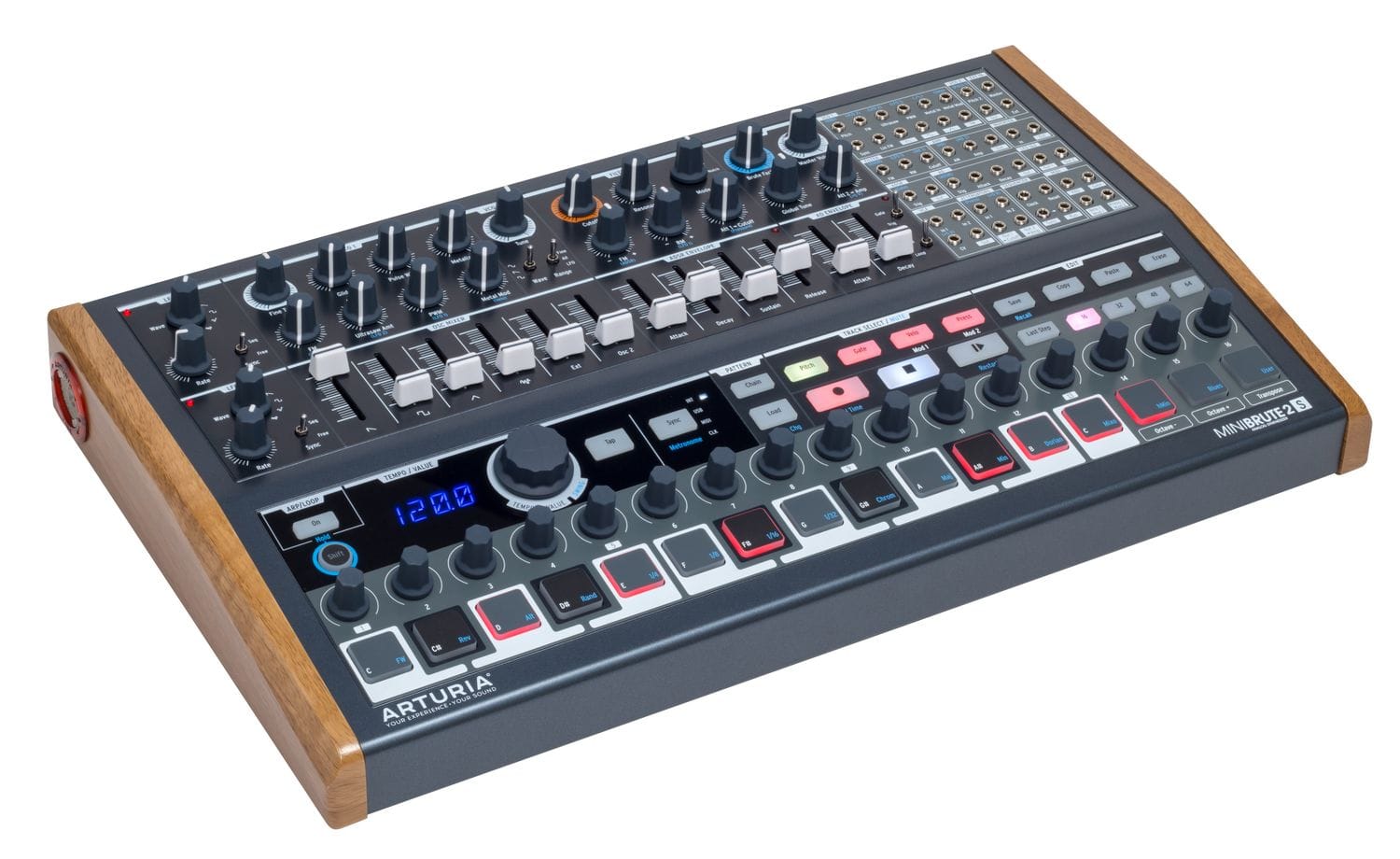

MiniBrute 2S unit
Power cord
8 patch cables
a “Cook Book” jam-packed full of superb sonic recipes for you to try out, put together by some of the most illustrious synth-chefs around.

Instrument dimensions

size : 19 x 11 x 2.2 inches (484 x 277 x 56mm)
weight : 7.7 lbs. (3.5 Kg)

Analog Synthesizer

2 Analog VCO’s:

VCO1 : Saw + UltraSaw, Square +Pulse width, Triangle + Metalizer. (Waveform mixing)
VCO2 : Sine, Saw, Square waveforms (three tuning ranges).

VCO 2>1 Hard Sync, VCO1 linear and exponential FM

White Noise Generator

External Audio In

Steiner Parker filter (12dB per octave): Low Pass, High Pass, Band Pass, Notch modes.

2 LFO’s with Sync: Sine, Tri, Saw, Square, Random, Slew Random

1 ADSR envelope

1 AD envelope

Trig, Gate modes
One shot or Loop
Attack and Decay times CV controllable

48-point CV and Gate patchbay

Inputs and Outputs for the voice and sequencer
Utility modules: inverter, attenuators, VCA

16 velocity and pressure sensitive pads

16 encoders

64 sequence memories

Sequence Pitch, Gate, Velocity and Pressure on up to 64 steps

Alternatively, sequence modulations such as Gates, LFOs, AD Envelopes, ...

Real-time or step recording modes

Arpeggiator/Looper

Save and recall sequence patterns on the fly

MIDI and USB I/O
