Arturia MiniFuse Recording Pack

$429
$400
−7%
In stock
SKUMinifuse Recording Pack
Color Black
1
Inquire via WhatsApp
Genuine products Studio-tested gear
About this product

Record, produce, and perfect your sound with an all-in-one package that ticks all your creative boxes. The MiniFuse Recording Pack combines a next-level audio & MIDI interface with the accessories and software that you need to make your sound happen. Plug in, get creative, and enjoy the music production workflow you’ve always wanted.

Specifications

The details.

CH / General

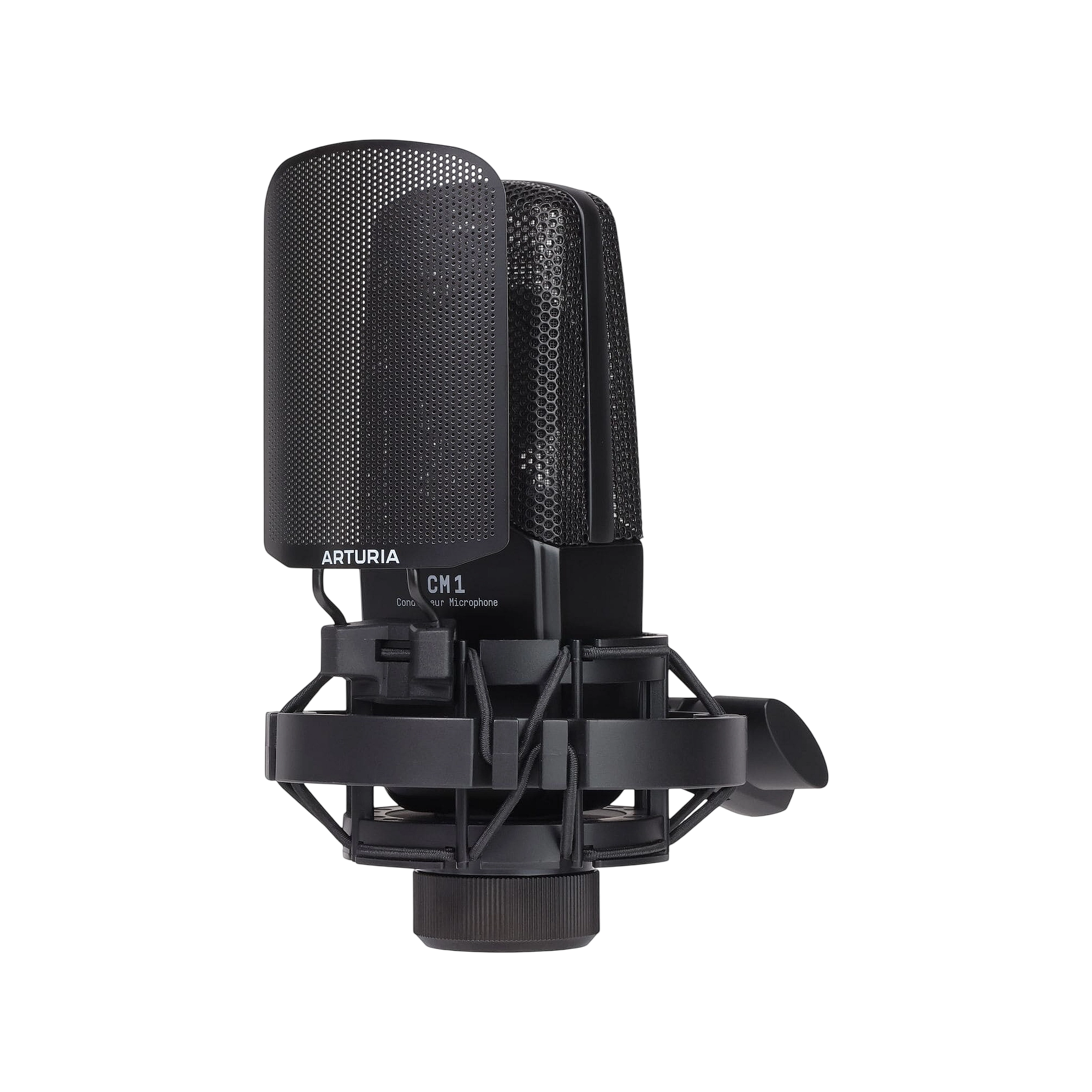

Microphone

• Capsule: Condenser (Cardoid)

• Sensitivity: -36 dB ‡3 dB (0 dB = 1 V/Pa at 1 kHz)

• Frequency response: 20 Hz to 20kHz

• Impedence: 110Ω +/-30% (at 1 kHz)

• Recommended Load impedence: > 1kΩ

• Equivalent Noise Level: < 20dBA (IEC 581-5)

• S/N Ratio: 74 dB

• Maximum SPL: 130 dB

• Power requirement: 48V phantom supply

• Current: 3.2 mA

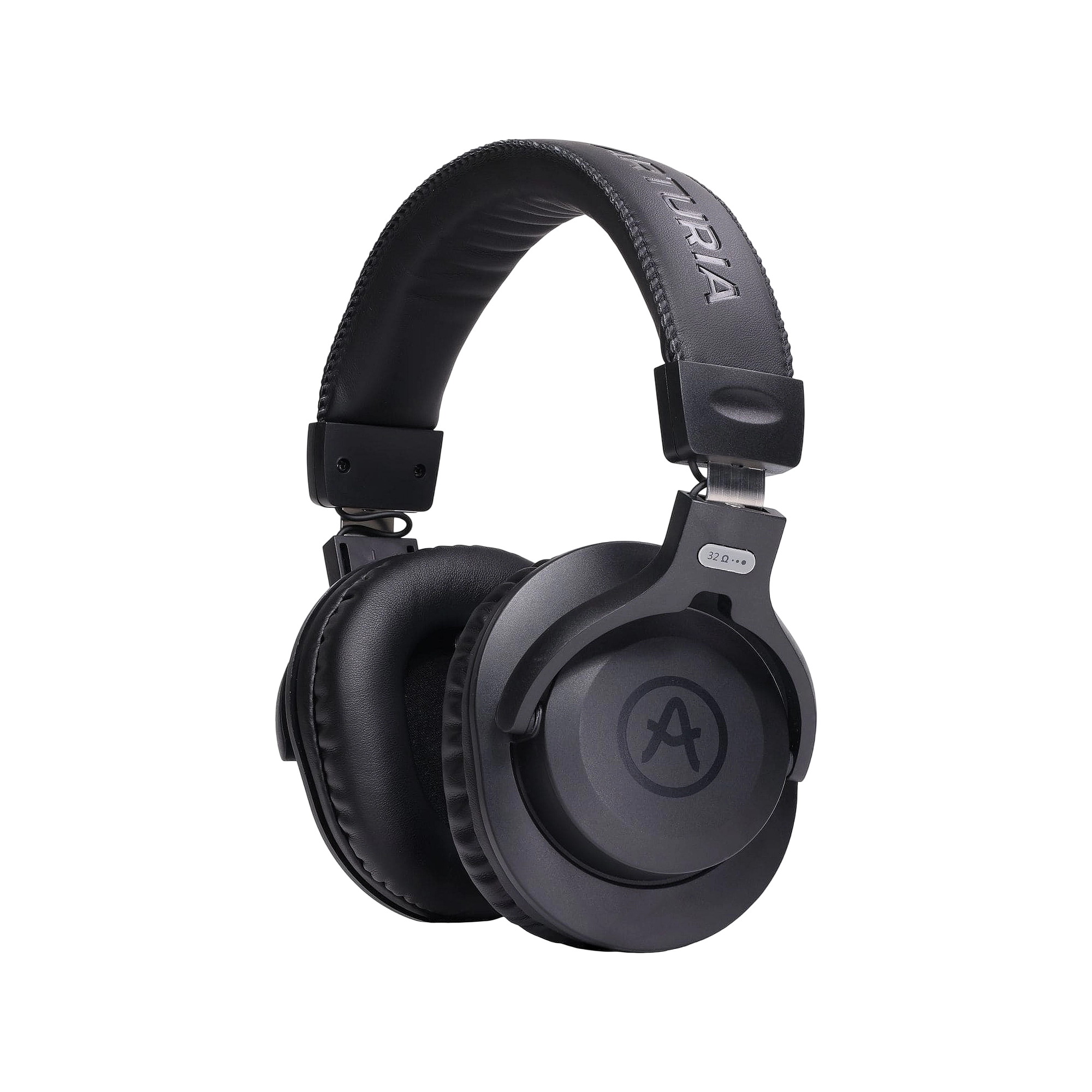

Headphones

• Type: Closed-back

• Drive diameter: 40 mm

• Impedence: 32Ω

• Sensitivity: 99 dB +/- 3dB

• Frequency response: 10Hz to 20kHz

• Max. power rating: 1.2W

• Cable length: 3m

• Weight: 260g with cable

MiniFuse 2

• 2x Inputs

• 2x Outputs

• 1x Headphone

• 1x MIDI I/O

Line Inputs

• Input impedance: 16kΩ

• Maximum input level: +22dBu

• Gain range: 56dB

• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)

• Dynamic range: 110dB typical (A-weighted)

• THD+N @ 1kHz: -100dB typical (un-weighted)

Instrument Input

• Input impedance: 1MΩ on Tip

• Maximum input level: +11.5dBu

• Gain range: 56dB

• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)

• Dynamic range: 110dB typical (A-weighted)

• THD+N @ 1kHz: -91dB typical (un-weighted)

Microphone Preamps

• Input impedance: 2.5kΩ

• Maximum input level: +9dBu

• Gain range: 56dB

• Equivalent Input Noise (EIN): -129dB typical (A-weighted)

• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)

• Dynamic range: 110dB typical (A-weighted)

• THD+N @ 1kHz: -100dB typical (un-weighted)

Speakers

• Output impedance: 94Ω

• Maximum output level: +12dBu

• Frequency response 20-20kHz: +/-0.09dB

• Dynamic range: 107.5dB typical (A-weighted)

• THD+N @ 1kHz: -101dB typical (un-weighted)

Phones

• Output impedance: 10Ω

• Maximum output level: +11.4dBu

• Frequency response 20-20kHz: +/-0.09dB

• Dynamic range: 104dB typical (A-weighted)

• Power @ 33ohm: 137mW

Supported Sample rates

• 44.1kHz, • 48kHz, • 88.2 kHz,

• 96kHz, • 176.4kHz, • 192 kHz
