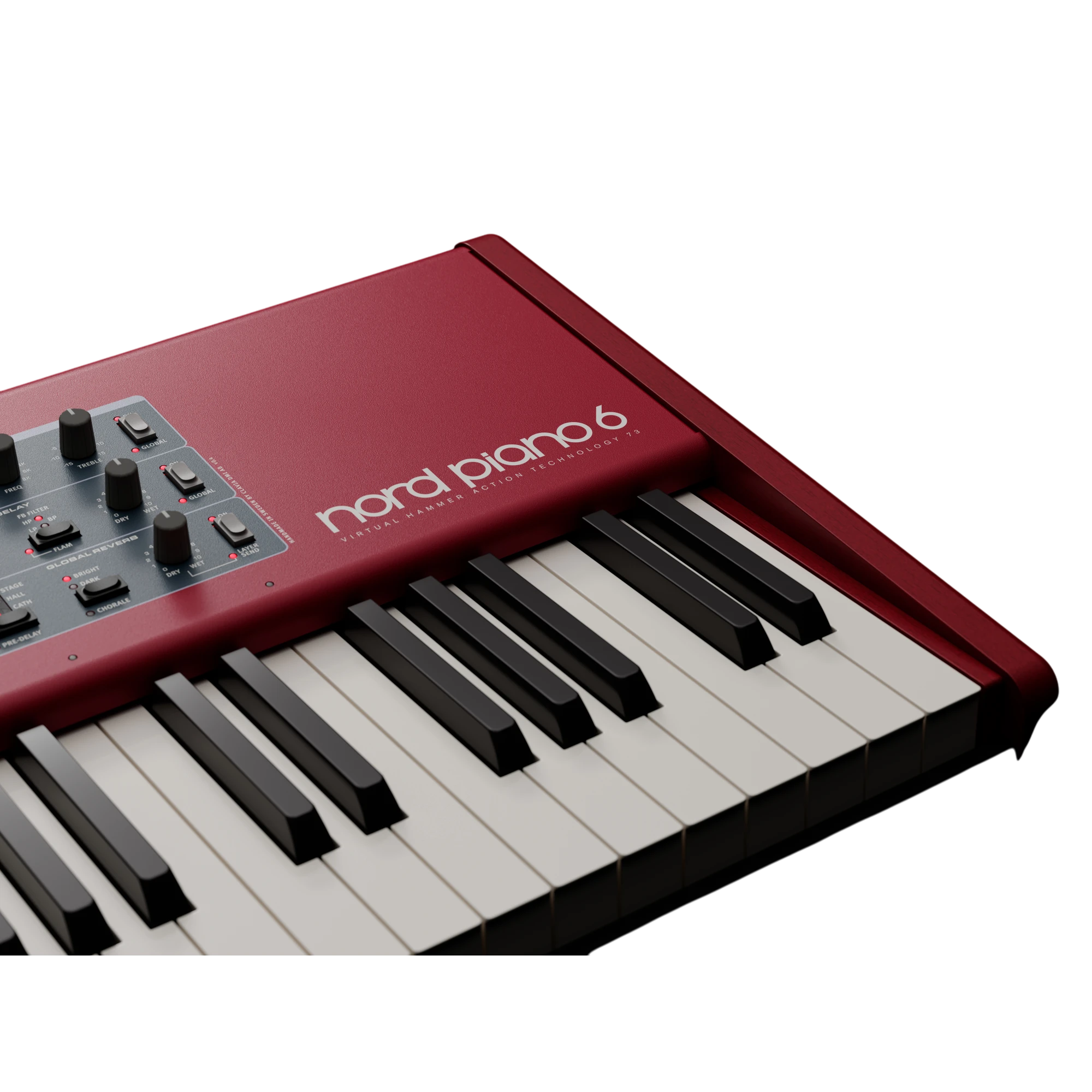

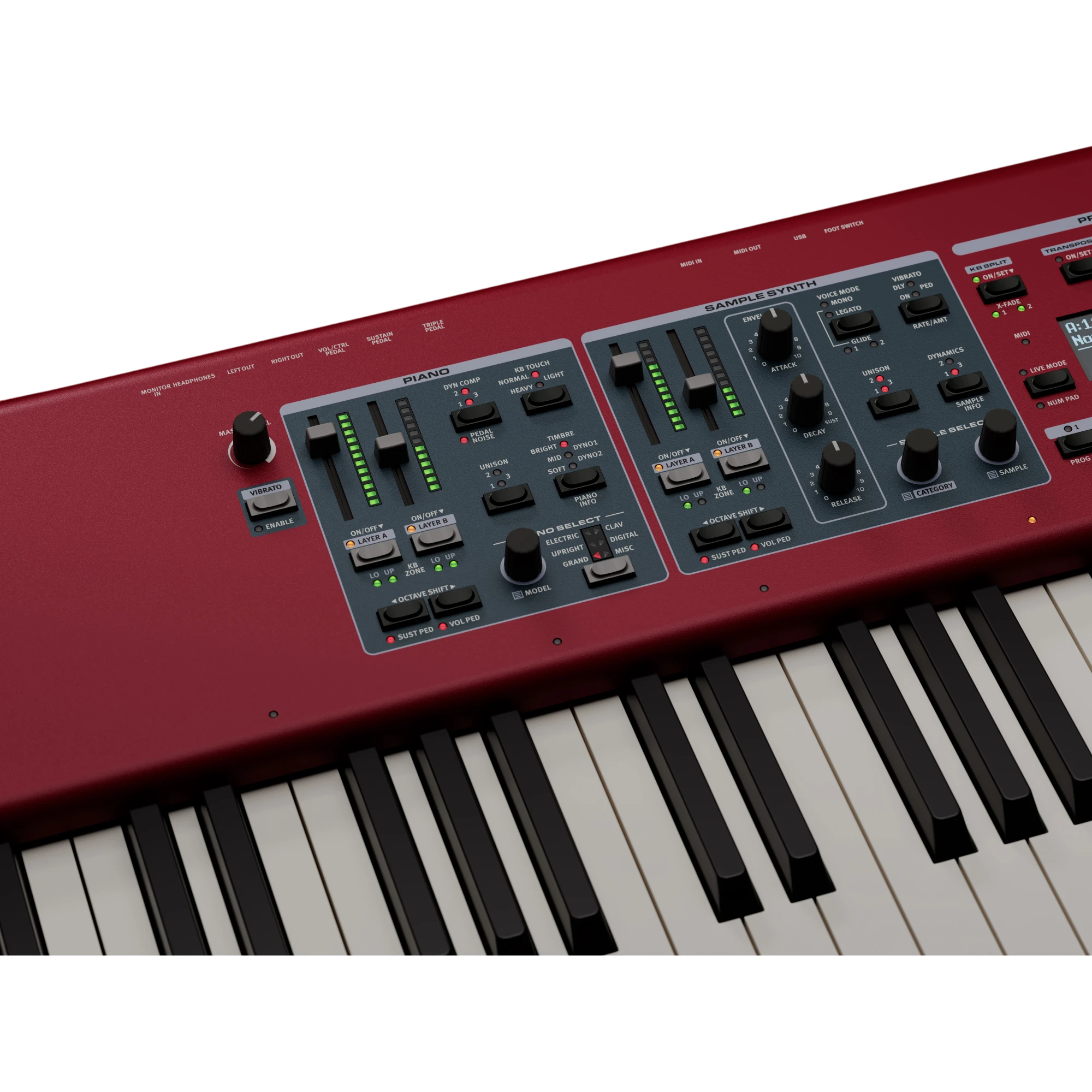

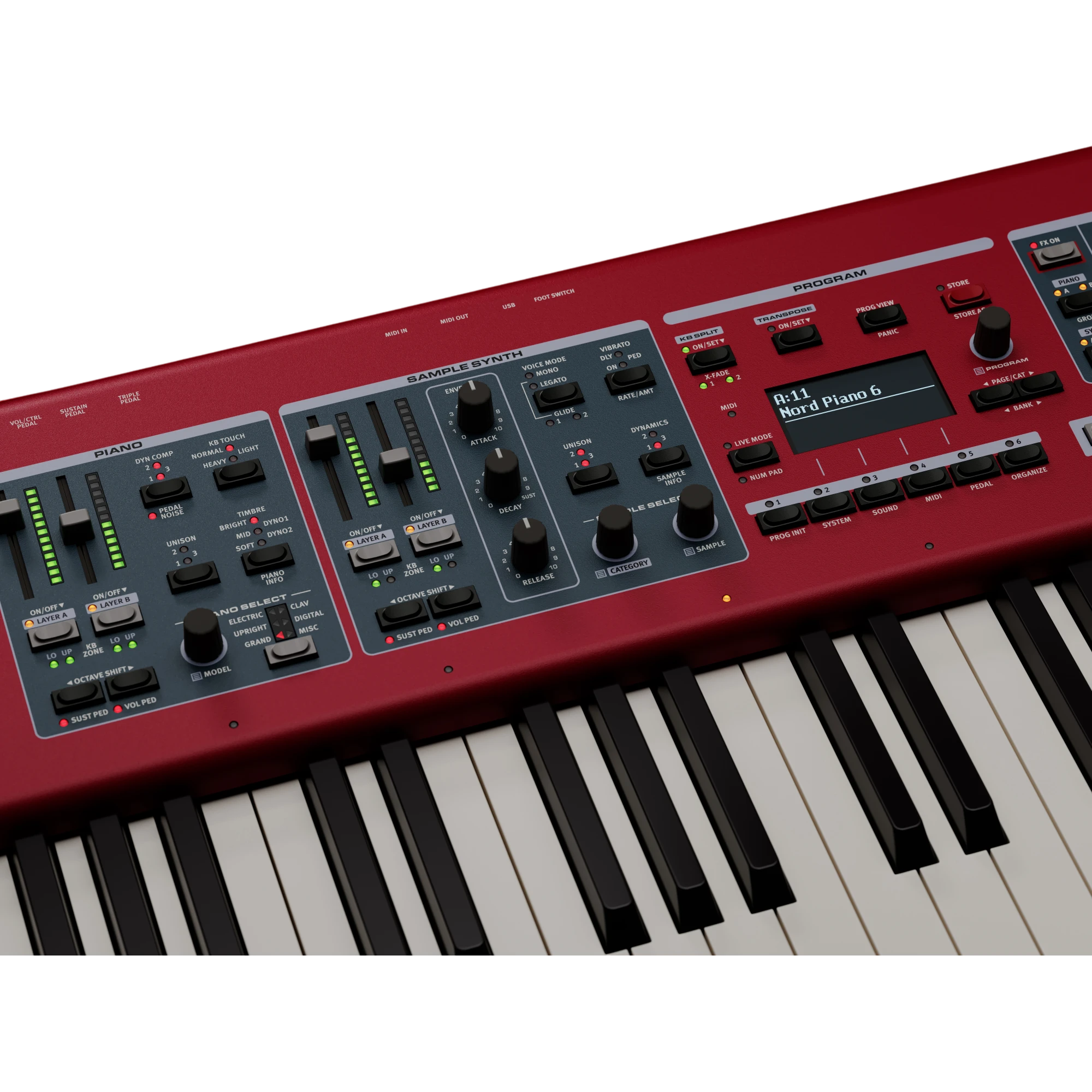

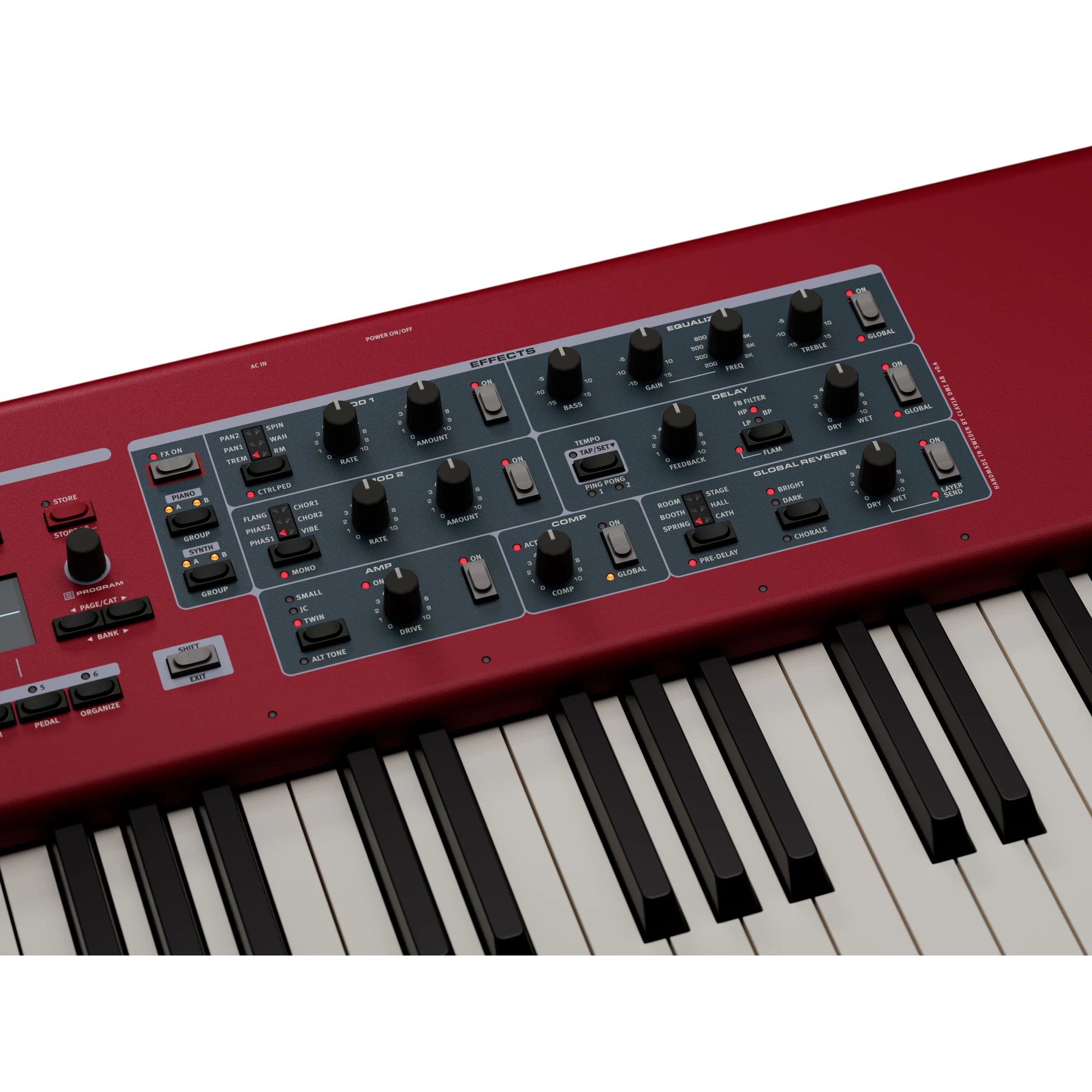

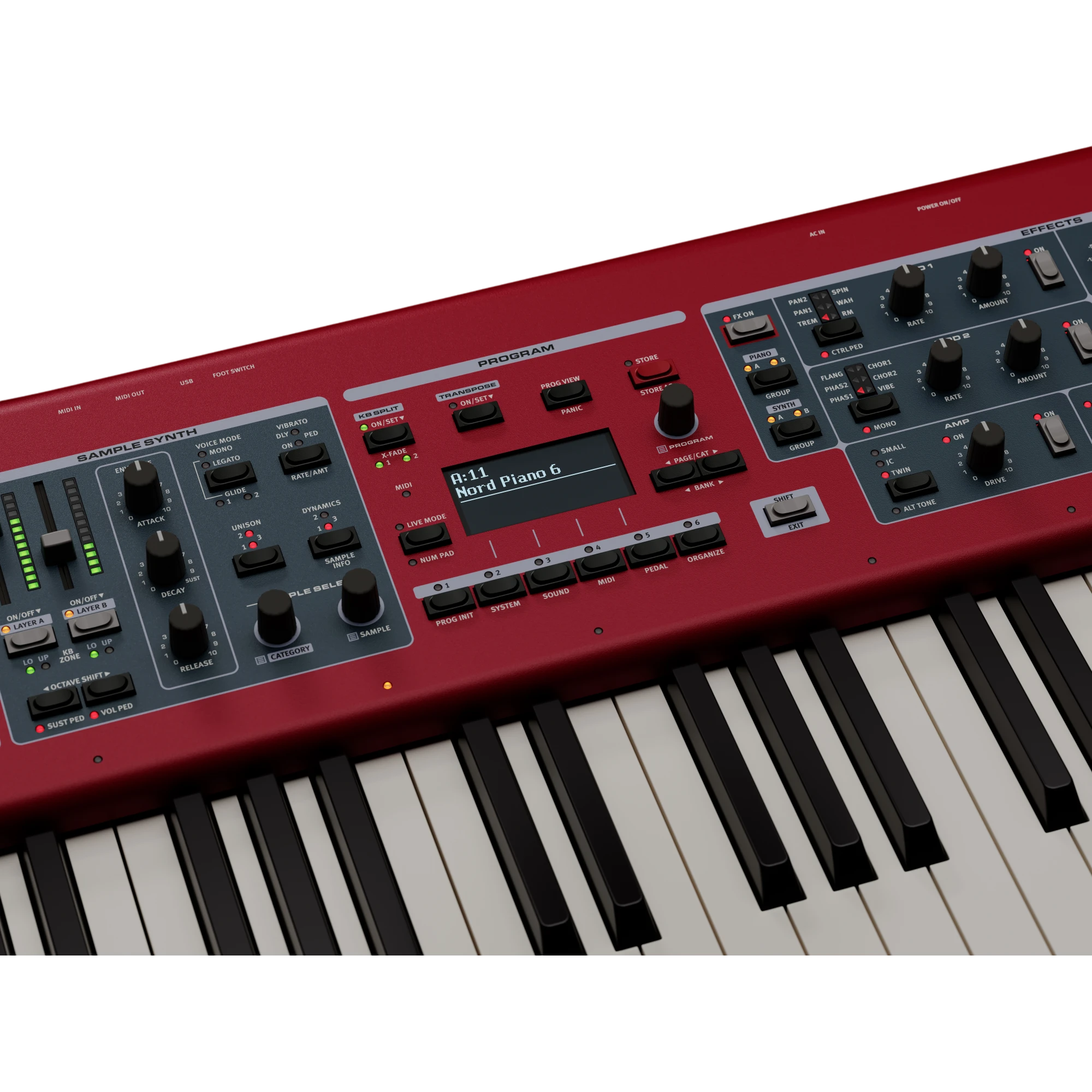

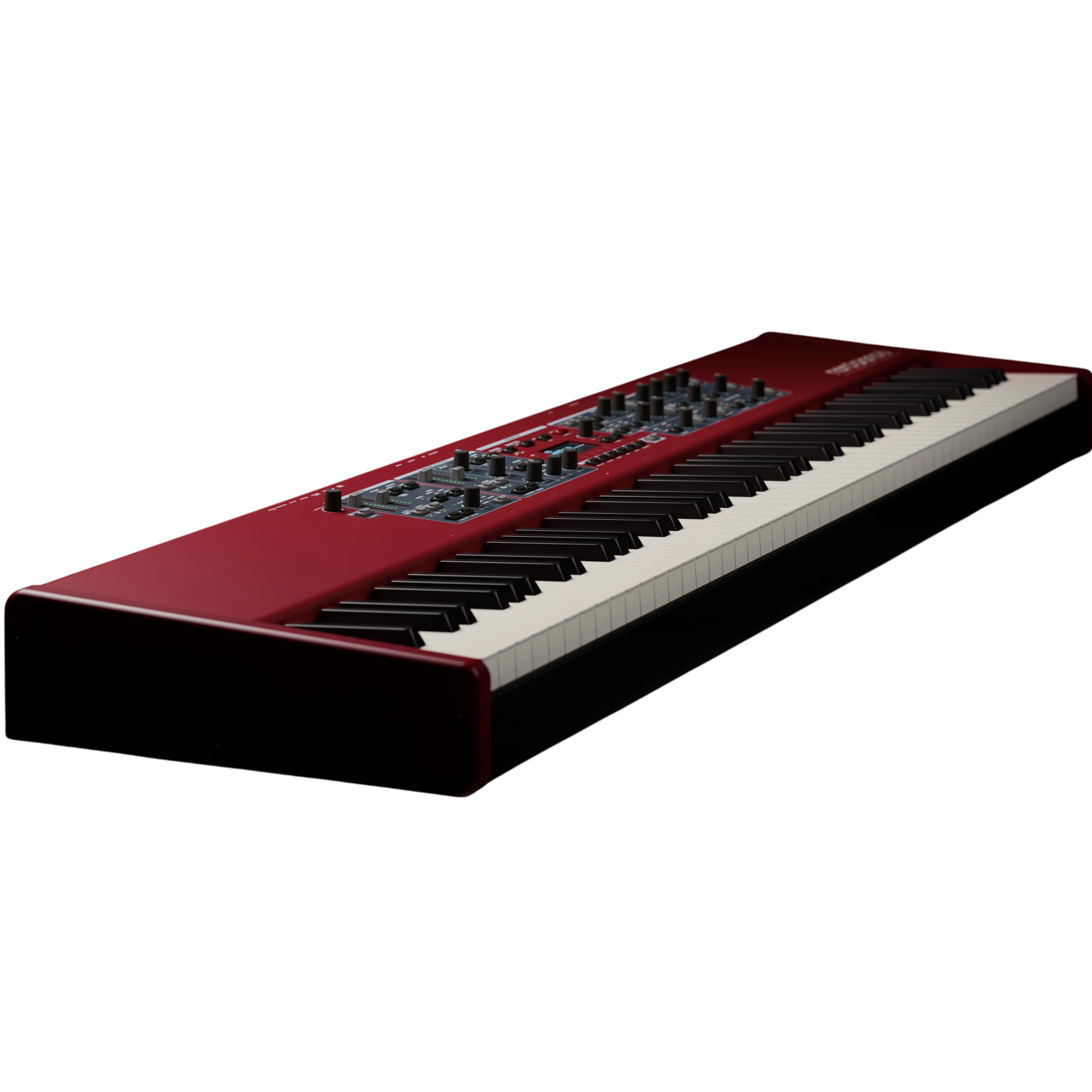

Nord Piano 6 88 - Stage Keyboard

CH / General

Highlight features

General

2 Piano + 2 Sample Synth Layers for advanced splits and layering
Dedicated LED faders for each Layer
Premium Triple sensor keybed
Nord Triple Pedal 2 included

Effects

Dedicated Effects section per Layer
Modulation Effects with Rate and Amount
Global Reverb with Send per Layer, Pre-Delay, Chorale and Bright/Dark mode
New Spring reverb
New Spin effect
Delay with new Filter, Flam and Ping Pong options
Dedicated Compressor effect

Piano Section

2 independent Piano Layers
120 Voice Polyphony
Soft, Mid, Bright and Dyno filters
Dynamic Compression
Unison feature
3 Keyboard Touch options
Advanced String Resonance

Sample Synth

2 independent Sample Synth Layers
Unison for rich, ensemble-like sounds
Tru-Vibrato with real time control
Round robin for natural sounding repetitions
Mono and Legato modes with Glide
Attack, Decay/Sustain, Release and Dynamic controls

General

Dual Piano and Dual Synth Layers
OLED Display
Seamless Transitions
Split Point Crossfades
16 banks with 36 programs - 576 locations
Organize for programs
Organize for programs
Live Mode - 6 Live programs
Global Transpose: +/- 6 semitones
Global Fine-tune: +/- 50 Cents
Program Transpose: +/- 6 semitones
88 or 73-note Triple Sensor keybed with grand weighted action
Selectable split point with LED indication (9 locations)
Nord Triple Pedal 2 included
MIDI over USB

Piano Section

2 independent Layers
2 GB memory for Piano sounds
All sounds can be replaced using Nord Sound Manager (Mac/Win)
120 Voice Polyphony
Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc
3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
Piano Timbre controls with custom settings for Electric Pianos and Clavinet
String Resonance for acoustic Grand Pianos and Uprights
Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Single Pedal 2 on acoustic and electric pianos
Dynamic Compression
Unison functionality

Sample Synth Section

2 independent Layers
1 GB memory for Nord Sample Library
Amp envelope with Attack, Decay/Sustain and Release controls
Vibrato with Rate/Amount, Delay, button or pedal
Unison with 3 amounts
Mono, Legato and Glide
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

Effects Section

Mod 1: Tremolo, Pan 1 (Soft), Pan 2 (Hard), Spin, Wah, Ring Modulator (controllable via optional pedal)

Mod 2: Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2, Vibe, Spin. Stereo/Mono options for each effect

Equalizer: Per Layer or Global, 3-band with sweepable mid (200 Hz - 8 kHz)

Amp: Twin, JC and Small. Each with Alternate Tone option

Compressor: Per Layer or Global, Amount control

Delay: Per Layer or Global, Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong with 3 amount options, Tap-Tempo, Feedback Filter (HP/LP/BP), Flam

Reverb: Global Reverb with Dry Wet amount optionally controllable per Layer. Spring, Booth, Room, Stage, Hall and Cathedral Reverb types, each with optional Pre-Delay, Chorale and Bright/Dark modes.

Group mode for Effects

Connections

2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
1 Monitor input - 1/8", 3,5 mm stereo jack
1 Headphone output - ¼", 6,35 mm stereo jack
1 Sustain Pedal input - ¼", 6,35 mm jack. Compatible with Nord Triple Pedal or a momentary pedal
Triple Pedal - 5 pin DIN connector. Use the included Nord Triple Pedal 2
1 Control/Volume Pedal input - ¼", 6,35 mm TRS stereo jack.
MIDI In, MIDI Out - 5 pin DIN connectors
USB - type B connector - for transferring sounds and USB MIDI
IEC C14 power connector

Dimensions

Nord Piano 6 88:
1282 mm (50.5"), 121 mm (4.7"), 349 mm (13.7")
Nord Piano 6 73:
1069 mm (42"), 121 mm (4.7"), 349 mm (13.7")

Weight

Nord Piano 6 88:
19.2 kg (42.3 lbs)
Nord Piano 6 73:
16.2 kg (35.7 lbs)

Included Accessories

Nord Triple Pedal 2
User Manual
Power cord

Optional Accessories

Nord Piano Monitor
Nord Single Pedal 2 (SP-2)
Nord Keyboard Stand
Nord Soft Case
Nord Music Stand
Nord Wood Music Stand
Dust Cover
