RAVEN MTI2

Studio And Recording

In stock

SKURAVEN MTI2

Genuine products Studio-tested gear

About this product

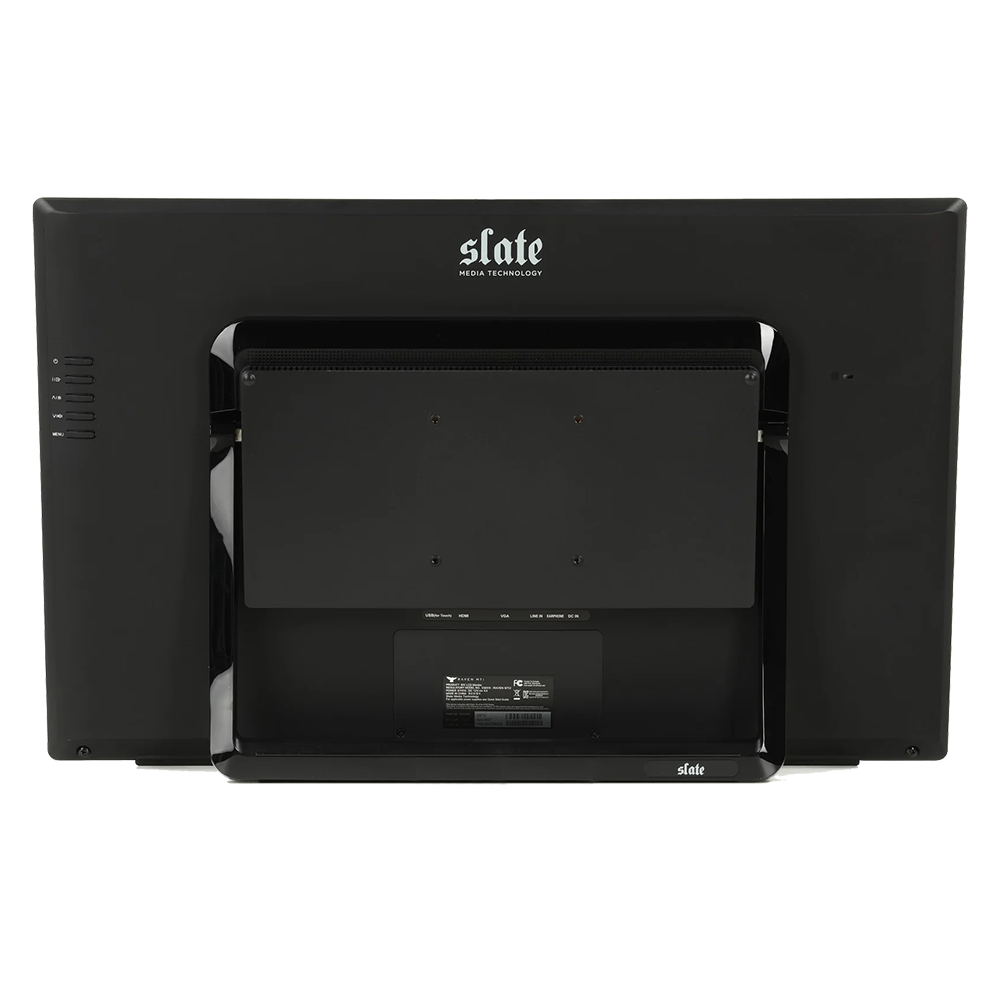

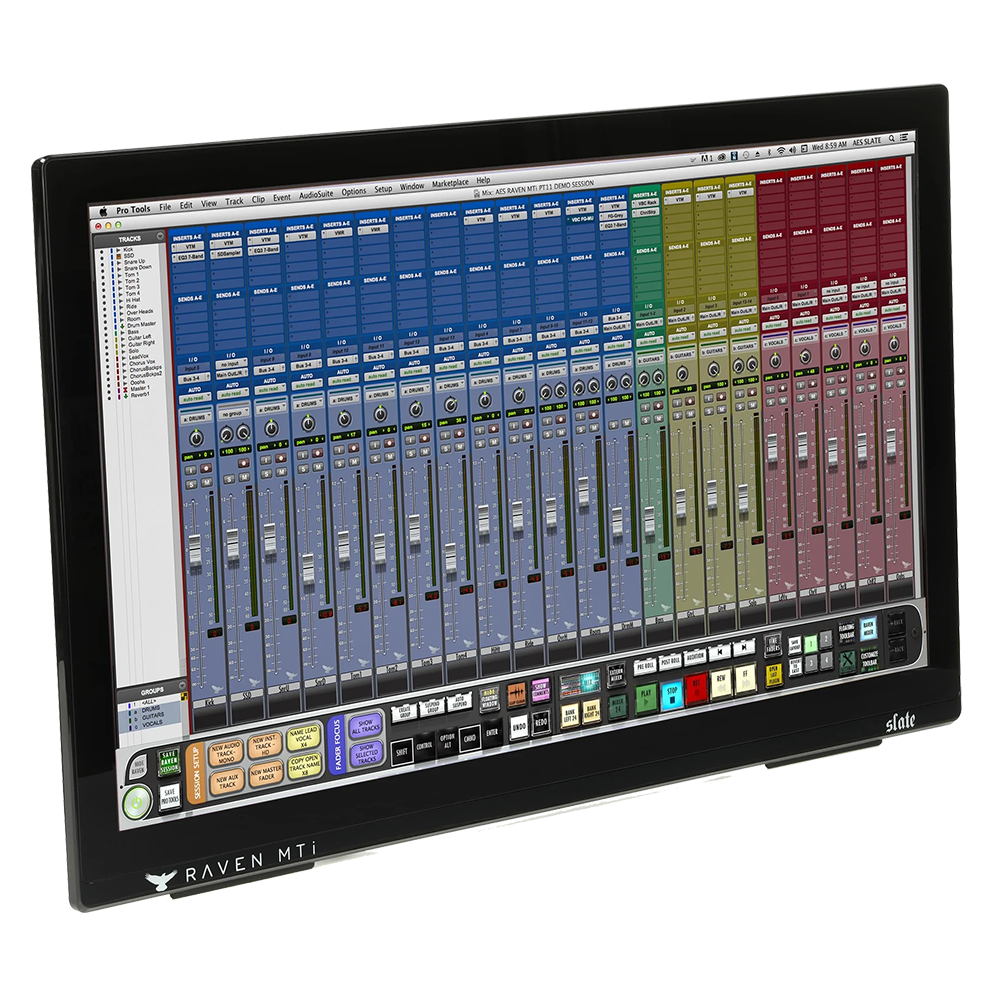

The RAVEN MTi2 is a state of the art 27” Multi-Touch Production Console featuring a state of the art multi-touch panel and the powerful new RAVEN 3.0 Control Software. Using the RAVEN MTi2, users have access to multi-touch faders, pans, sends, and tweak plugins with their fingers as if they were real hardware. The RAVEN 3.0 Control Software also features a user-customizable multi-function TOOLBAR and the award-winning BATCH COMMAND SYSTEM, a powerful automated task application that will save audio engineers hours per day by cutting out tedious technical tasks.

Specifications

The details.

CH / General

Slate Control: The Slate Control is a 100% Analog Monitoring System designed by legendary pro audio designer Paul Wolff. The Slate Control has been designed to provide un-compromised sonic clarity while delivering all of the necessary features studios need from the “center section” of a classic console.
Features: • 7 Stereo inputs
• 3 Speaker Sources with LFE Enable per speaker pair.
• 2 Stereo Cue Outputs to feed Headphone Amps.
• Talk Back system with built in mic and “Talkback Presets” to independently send talkback to specified outputs.
• CAL Mode to pre-set a reference monitoring level.
• LFE Output with LPF & Crossover Point, Phase and Level.
• DB25 Connections for Inputs and Outputs
• DB9 Connections for VU Aux and Talkback Aux
• Powered USB 2.0 inputs x2

*33mm audio Jack for direct referencing from a device with 33mm headphone output (like a mobile phone or audio player).
RAVEN MTi2: • State-of-the-art 27″ multi-touch display HD resolution of 1920×1080
• Completely LED backlit to consume less power and emits less EMI
• 10-touch display allows various multitouch features like fader control and more instant integration with most major DAWs Gives you hands-on control of all your DAWs parameters as well as acts as your computer’s main touch-capable display
• Flexible and user-customizable, multifunction TOOLBAR
• Easy compatibility using a standard HDMI cable and a USB 2.0 connection
Supported DAWs: • Pro Tools 19-2023 (macOS & Windows)
• Logic Pro X (macOS)
• Ableton Live 9 – 11 (macOS & Windows)
• Cubase Pro 10 – 13 (macOS & Windows)
• Nuendo 10 – 13 (macOS & Windows)
• Studio One v4, v5, and v6 (macOS & Windows)
• Digital Performer 8 – 11 (macOS)
Supported Operating Systems: • macOS Catalina 10.15- Sonoma 14.1.1
• Windows 10-11
