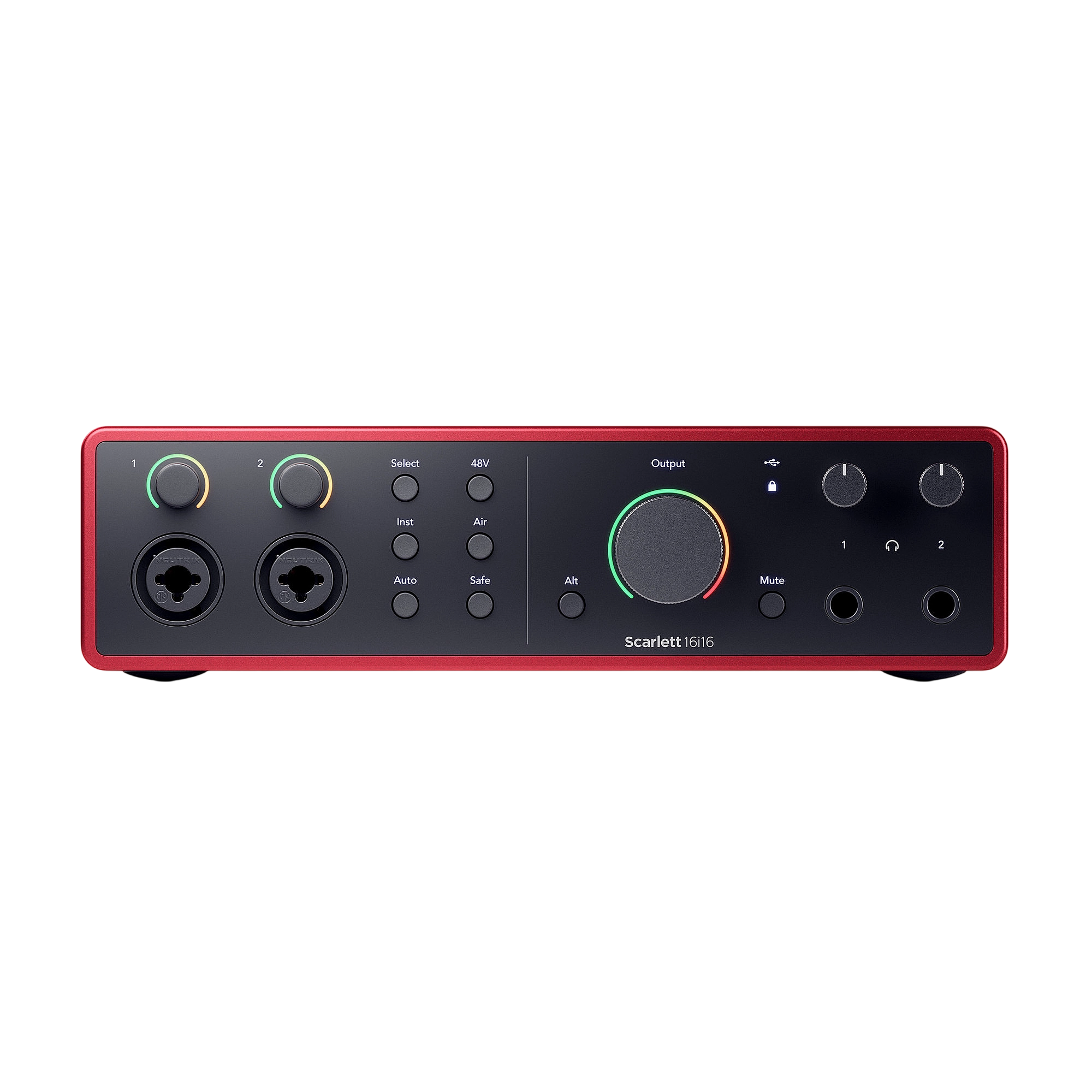

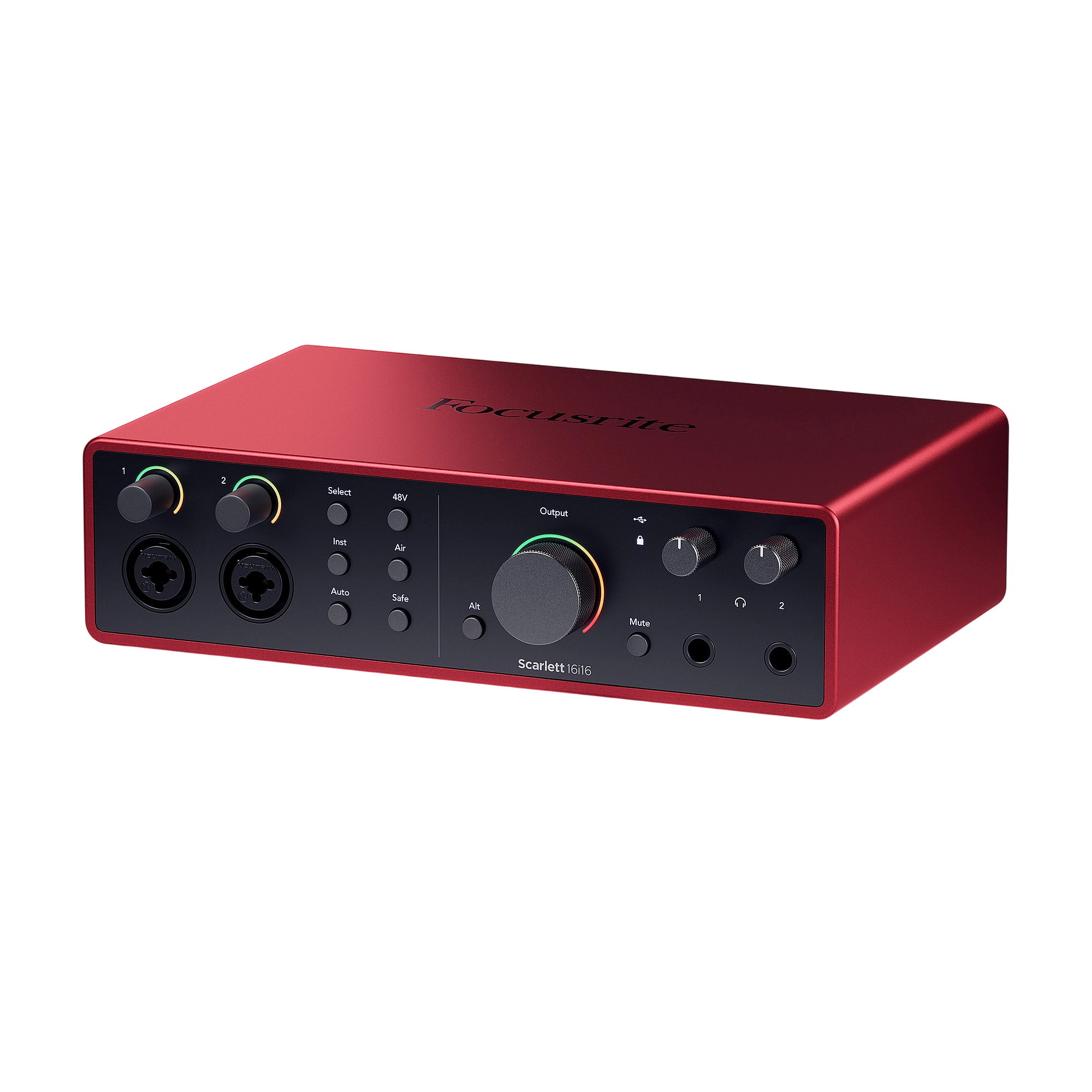

16i16 is the compact, portable studio hub for artists and producers. Whether you're on the go, hopping from sessions, or recording at home, you'll always have access to two of our finest preamps, plus instrument, line, and MIDI connections for whatever the project throws your way: guitars, keys, synths, grooveboxes, and controllers. And if you're looking to expand your channel count, it's easily done with S/PDIF and ADAT.
- Availability
In Stock
- Sku
N/A
- Categories
| Key Features | Two ultra-low-noise mic/line/instrument preamps Four additional line inputs Two Air preamp modes for classic console sound Clip Safe and Auto Gain modes Alt speaker switching MIDI, S/PDIF, and ADAT connectivity Includes Hitmaker Expansion and DAW software bundle |
| Overview | Number of Microphone Preamps |
| Dimensions | Height |
| Supported sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Microphone inputs | Frequency Response 20-20kHz ± 0.06dB Dynamic Range 116dB (A-Weighted) THD+N -100dB @ 8dB gain Noise EIN -127dBu (A-Weighted) Maximum Input Level 16dBu Gain Range 69dB Impedance 3kΩ |
| Variable Line inputs | Frequency Response 20-20kHz ± 0.05dB Dynamic Range 115.5dB (A-Weighted) THD+N -100dB @ 8dB gain Maximum Input Level 22dBu Gain Range 69dB Impedance 24kΩ |
| Fixed Line inputs | Frequency Response 20-20kHz ± 0.02dB Dynamic Range 115.5dB (A-Weighted) THD+N -106dB Maximum Input Level 22dBu Impedance 48kΩ |
| Instrument inputs | Frequency Response 20-20kHz ± 0.05dB Dynamic Range 113dB (A-Weighted) THD+N -80dB @ 8dB gain Maximum Input Level 12dBu Gain Range 62dB Impedance 1MΩ |
| Line outputs (Balanced) | Frequency Response 20-20kHz ± 0.02dB Dynamic Range 122dB (A-Weighted) THD+N -112dB Maximum Output Level 16dBu Impedance 200Ω |
| Headphone outputs | Frequency Response 20-20kHz ± 0.1dB @ 33Ω / 300Ω Dynamic Range 112dB @ 33Ω 116dB @ 300Ω THD+N -100dB @ 33Ω (Minimum) -110dB @ 300Ω (Minimum) Maximum Output Level 5dBu into 33Ω 11dBu into 300Ω Maximum Output Power 57mW into 33Ω 27mW into 300Ω Impedance 11Ω |
| Analogue to Digital Converter | THD+N -110dB Dynamic Range 120dB |
| Digital to Analogue Converter | THD+N -115dB Dynamic Range 130dB (A-Weighted) |
| Power | USB 3A External (Optional) 15W |
| Compatibility | Windows Intel, AMD, and Arm64 processors supported macOS Apple Silicon and Intel processors supported |
| What's in the box | Scarlett 16i16 audio interface 1.5m USB-C to USB-C cable USB-C to USB-A adaptor External power supply |
