Performance/General

New panel design for exceptional overview and flexibility
Premium Triple sensor keybed
New preset library
Dedicated LED faders for each Layer

Synth section
Nord Wave 2 Synth Engine
3 independent Synth Layers
Doubled sample memory
Enhanced samples with Tru-Vibrato, Unison and Round Robin
Extensive real time controls
Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
Extern mode for advanced MIDI control

Piano section
Enhanced collection of Uprights, Grands,EPs and more
Dynamic Compression
Unison feature
Creative Timbre presets
Advanced String Resonance
Dynamic Pedal Noise

Effects
Dedicated Effect section per Layer
New Variations for Modulation, Amp, Delay and Reverb Effects
New Spring, Booth and Cathedral Reverb
New Spin effect
New Pump effect
New Flam and Space Delay

Organ section
Award-winning organ simulations of B3, Vox/Farfisa and Pipe Organ models
Physical drawbars with LED indicators
Enhanced Rotary Speaker Drive
Drawbar Live mode
New B3 Bass mode
Enhanced model 122 Vintage Rotary Speaker with new drive including close or distant mic position

Master Level Control

Wooden Pitch Stick

Modulation Wheel

512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations

Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.

8 Live Programs

2 Individual Layer Scene Setups

3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch

Stereo and Mono output routing options

Programmable Transpose +/- 6 semitones

Master Clock functionality with manual, external and tap-tempo rate control

Internal and MIDI clock source

MIDI over USB functionality

Level control

Aftertouch

Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones

3 Split Point width (crossfade) options: Lrg, Sml or Off

Nord C2D B3 Tone wheel Organ simulation
Vox Continental and Farfisa models
2 Digital Pipe Organ models
B3 Bass mode

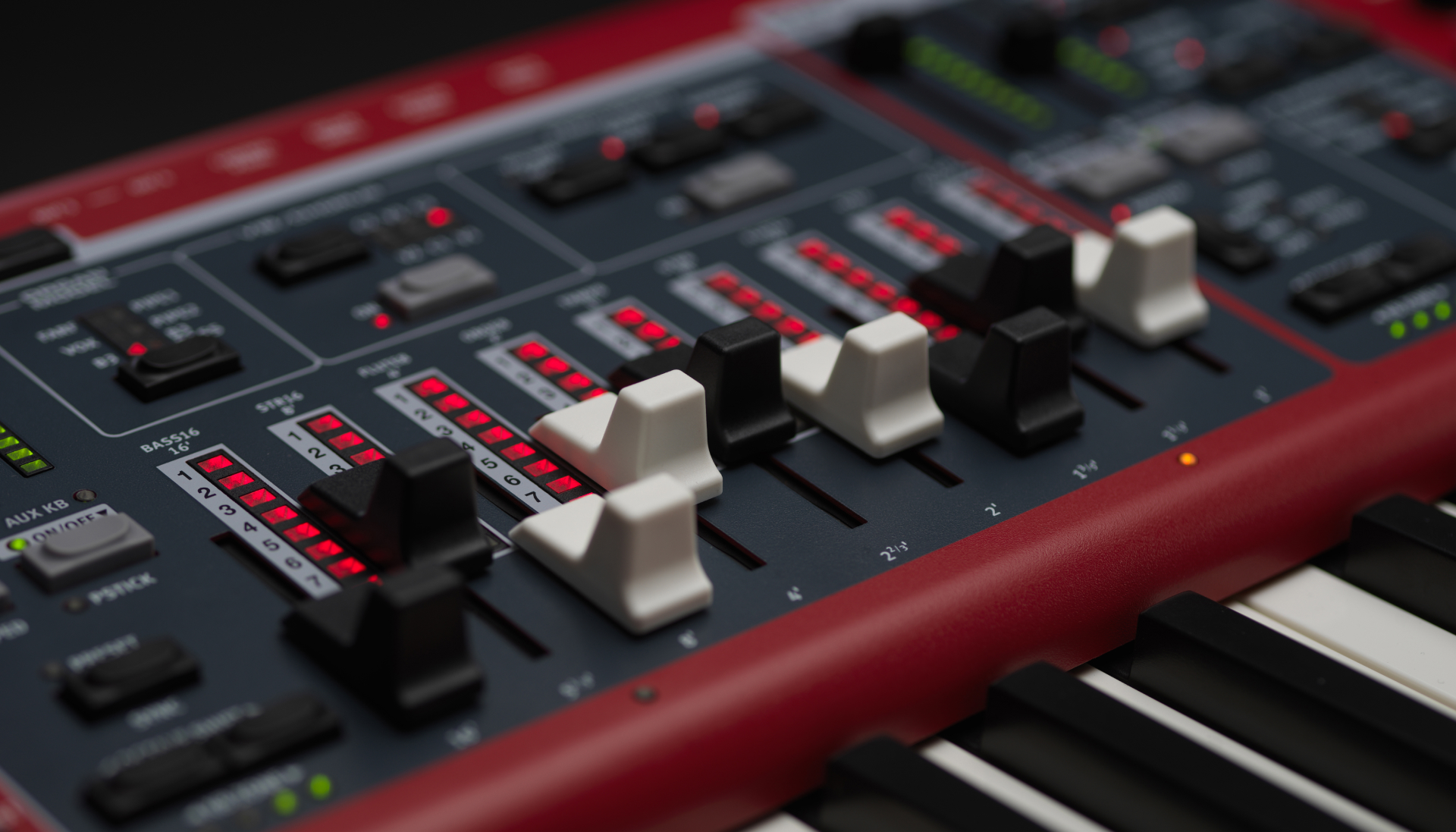

Physical Drawbars with LED graphs
Preset or Drawbar Live mode
Percussion controls
Vibrato / Chorus control
2 Layers (2-Part Multitimbral)

2 GB memory for Piano sounds

All sounds can be replaced using Nord Sound Manager (Mac/Win)
120 Voice Polyphony

Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord

3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)

Piano Timbre controls with custom settings for Electric Pianos and Clavinet

String Resonance for acoustic Grand Pianos and Uprights

Selectable Soft Piano Release

Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos

Dynamic Compression

Unison functionality

2 Layers (2-Part Multitimbral)

Nord Wave 2 Synth Engine with Sample Playback

Dedicated OLED Display for Waveform/Sample selection and parameter editing

1 GB memory for Nord Sample Library

All samples can be replaced using Nord Sound Manager (Mac/Win)
46 Voice polyphony

Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample

Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)

Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter

Filter Drive: Off, 1, 2 and 3

Filter Tracking: Off, 1/3, 2/3 and Full

3 Unison modes

Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.

Filter envelope (Attack, Decay/Sustain, Release) with Velocity control

Amplitude envelope (Attack, Decay/Sustain, Release) with Velocity control

Oscillator envelope (Attack, Decay/Sustain, Release) with Velocity control

LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold

Advanced Arpeggiator with Arp, Polyphonic and Gate modes

Arpeggiator Patterns for all modes, with Accent and Pan options

LFO and Arpeggiator synchronizable to Master Clock

3 Layers (3-Part Multitimbral)

Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect

Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect

Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.

3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model

Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls

Tube amp simulation with adjustable overdrive

3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz

Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive

Effect rates/tempo can be synchronized to the Master Clock

Compressor with Fast Mode

Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options

Nord Stage 4 Compact: 73-key Triple Sensor Semi Weighted Waterfall keyboard with Aftertouch. Range: E-E

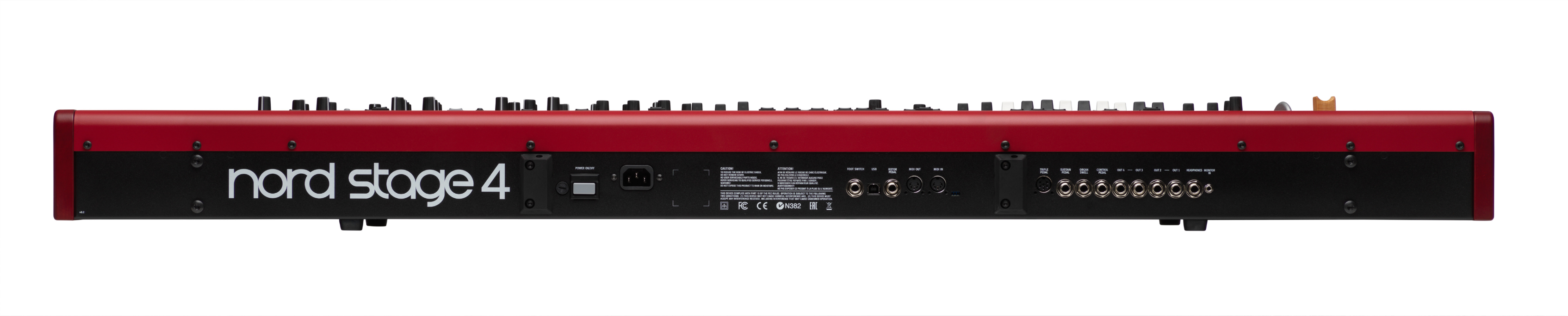

4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced

Stereo Headphone output - ¼", 6,35 mm stereo jack

1 Monitor input - 1/8", 3,5 mm stereo jack

Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals

Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2

Rotor Pedal - ¼", 6,35 mm jack.

Use a momentary pedal or a switch type pedal.

Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack.

Control Pedal - ¼", 6,35 mm TRS stereo jack.

Foot Switch input - ¼", 6,35 mm jack.

Use a momentary two-button pedal or a single switch type pedal.

MIDI In - 5 pin DIN connectors

MIDI Out - 5 pin DIN connectors

USB - type B connector for USB MIDI, Software Update and Sound Transfer
Power Cord with IEC C14 connector

User Manual
Power cord
USB cord

Nord Triple Pedal 2
Nord Single Pedal 2
Nord Sustain Pedal 1
Nord Triple Pedal 1
Nord Piano Monitor
Nord Keyboard Stand EX
Nord Soft Case
Nord Music Stand EX
Nord Half-Moon Switch (for Compact model)
Dust Cover

Nord Stage 4 Compact:
1066 mm (42"), 104 mm (4,1"), 322 mm (12.7")

Nord Stage 4 Compact: 10.4 kg (22.9 lb)
