Six drive circuit topologies with custom tuned voicing for each drive type
Precision crafted drive circuits stackable in multiple combinations for a wide variety of complex, responsive tones.
Analog class A JFET input gain stage maximizes headroom while adding up to 20dB of pure analog gain
Drive and Tone control ranges optimized for each circuit topology

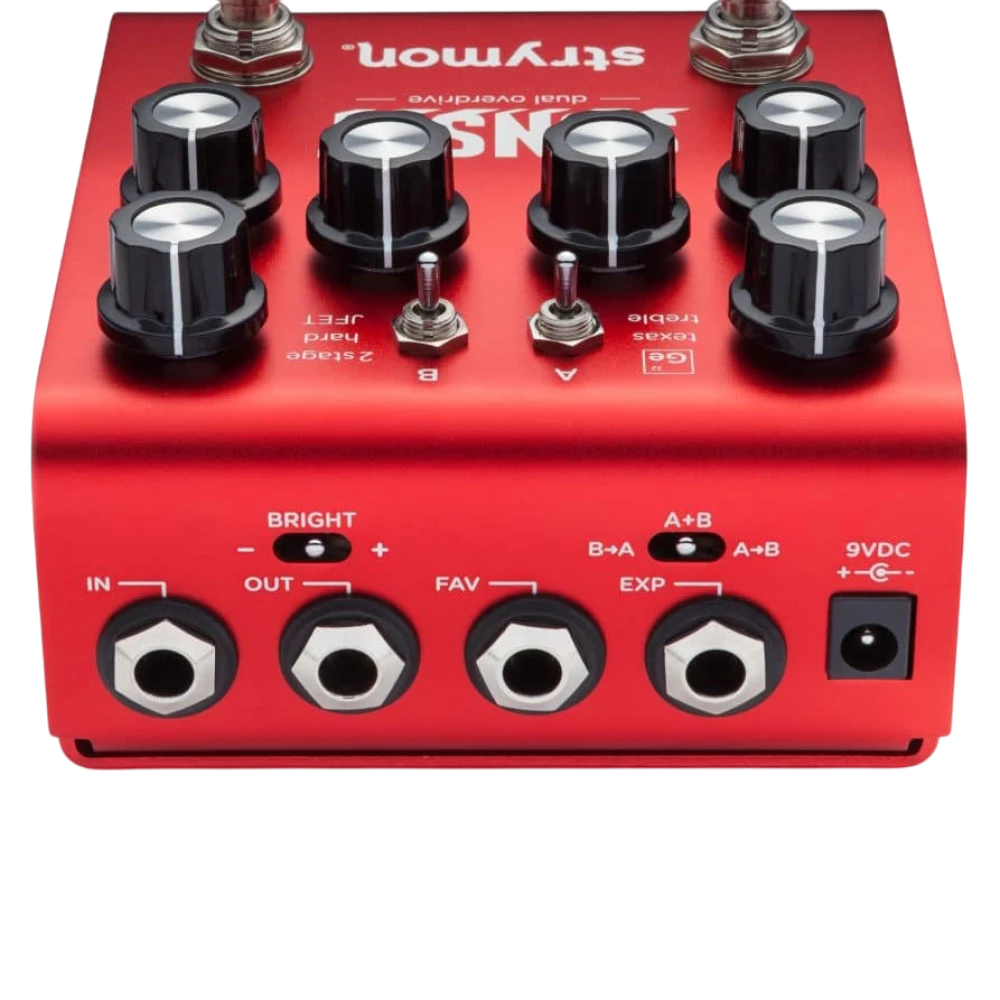

Series, reverse series, and parallel drive circuit stacking via Config switch
Bright switch to tailor the sound for use with all amplifiers from dark to bright
Optional variable-threshold noise reduction for taming noisy guitar pickups

High impedance mono input
Mono output
Favorite Input to connect an external MiniSwitch to recall a Favorite preset
Expression pedal input allows the connection an expression pedal for simultaneous morphing control over multiple parameters (Expression mode), or logarithmic taper for smooth volume control (Volume mode)
MIDI accessible via Expression jack for remote parameter control and access to 300 preset locations

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized red aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA of current
4.5” deep (11.43 cm) x 4” wide (10.16 cm) x 2.4” tall (6.1 cm)
Designed and built in the USA
